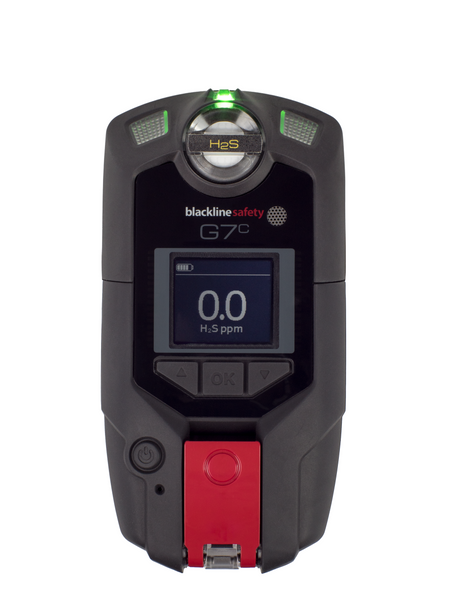

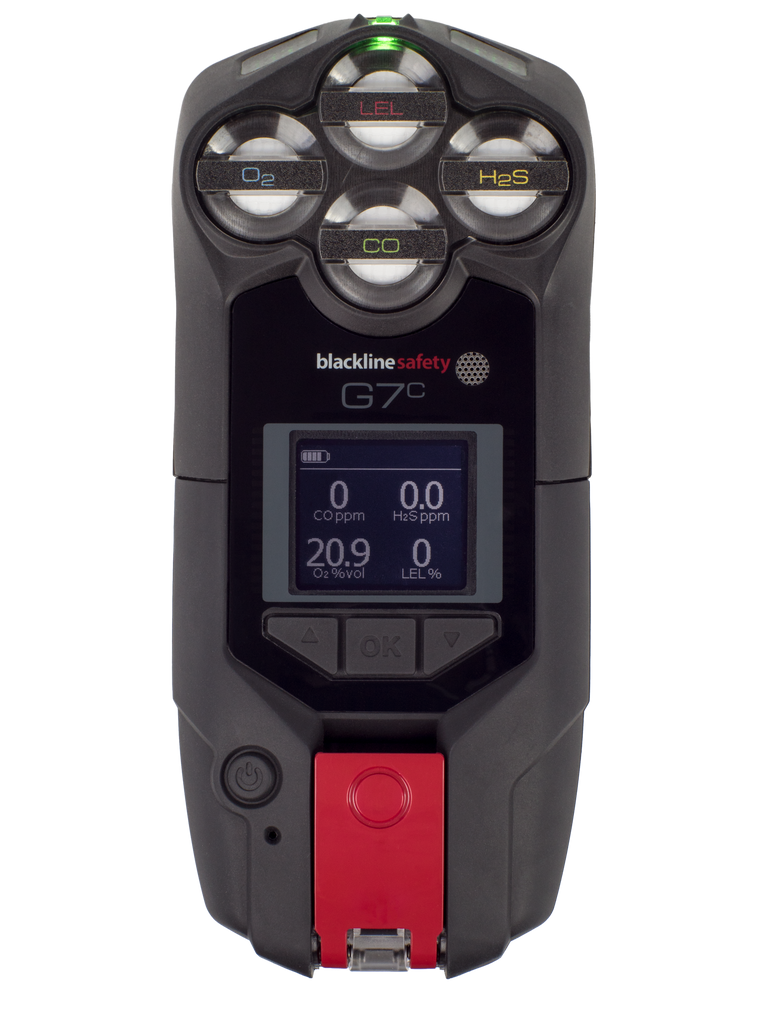

About Blackline G7C Gas Meter

THE WORLD'S HARDEST-WORKING CONNECTED MONITOR IS NOW AVAILABLE AS A GAS METER FOR PURCHASE.

Blackline G7C Gas Meter delivers an exclusive customizable modular design, delivering the ability to expand functionality with a range of plug-and-play cartridges and a range of gas sensors.

Blackline G7C Gas Meter Features

Additional gas cartridge features

Under limit, Over limit, Time-weighted average (TWA), Short-term exposure limit (STEL), High gas alert, Low gas alert, Bump test and calibration notification, Bump test and calibration failure

Size & weight

G7 with Single-gas Cartridge Size: 64 mm x 128 mm x 27 mm (2.5” x 5.0” x 1.1”) Weight: 167 g (5.9 oz)

User interface

168 by 144 pixel graphical, high contrast, liquid crystal display with front lighting, menu system driven by three-button keypad, power button (on/off ), check-in button (check-in/silent SOS), SOS latch (send emergency alert)

Multi-language support: Yes, EN, FR, ES, DE, IT, NL, PT

User notification

Green SureSafe® light: continuous (powered)

Red top and front lights: Red alert communicated

Alarm Indicators: Speaker, LED lights and vibration motor

Speaker sound pressure level: ~95 dB @ 30 cm (~95 dB @ 11.8”)

Power & battery

Rechargeable Li-ion battery: 1100 mAh Li-ion

Battery Life: 18 hours at 20°C (68°F) under normal usage

Charge time: 4 hours

Environmental

Storage temperature: -30°C to 60°C (-22°F to 140°F)

Operating temperature: -20°C to 55°C (-4°F to 131°F)

Charging temperature: 0°C to 45°C (32°F to 113°F)

Ingress Protection: Designed to meet IP67

Approvals

G7c: SAR, RoHS, CE, RCM

Unit ID: 3570xxxxxx

Canada & USA: Class I Division 1 Group A,B,C,D T4; Class I Zone 0 AEx da ia IIC T4; Ex da ia IIC T4 Ga

IECEx: Ex da ia IIC T4 Ga

ATEX: Ex da ia IIC T4 Ga

LEL: CSA C22.2 No.152; ISA 12.13.01

LEL Pump Cartridge: CSA C22.2 No.152; 0°C ≤ Ta ≤ 40°C; ANSI/ISA-12.13.01; -10°C ≤ Ta ≤ 40°C

Blackline G7C Gas Meter Warranty

G7: two years limited warranty

 **Optional Push-To-Talk- Call for details.**
