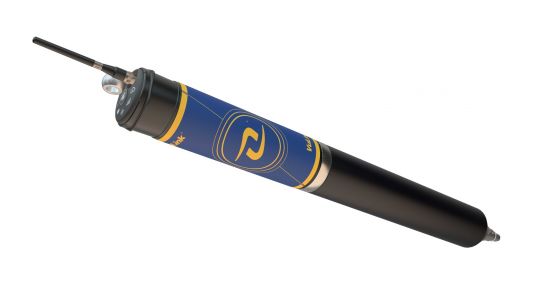

Remote Telemetry Monitoring by VuLink

Vulink is a global cellular telemetry device that will change the way you think about remote monitoring. Our turnkey solution is easy to set up, works from anywhere and delivers long-lasting power. So, you never have to worry about your equipment or your data.

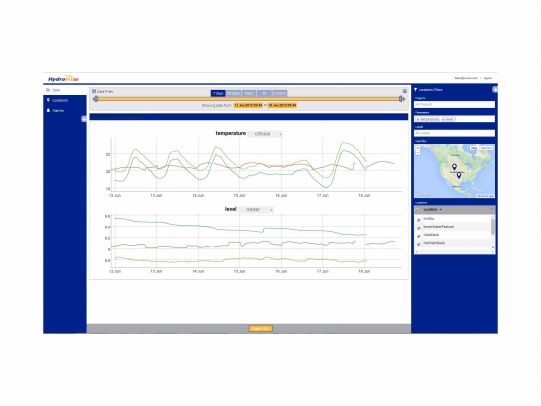

VuLink is part of the most complete monitoring solution available. Instrumentation, telemetry and software work together within In-Situ's shared ecosystem to make it easier than ever to collect, access and manage your data.

ONE-PRESS SETUP

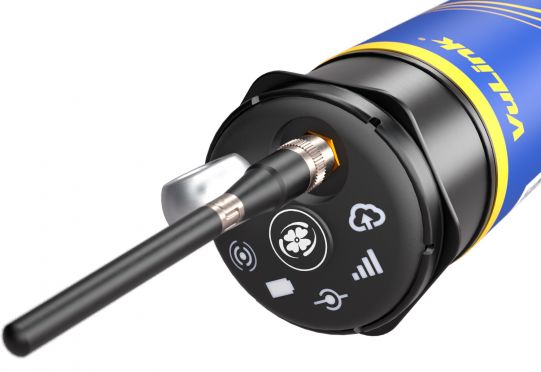

• VuLink autodetects any In-Situ device with one button press or scheduled report. Icons indicate battery life, instrument connection, network connection and HydroVu connection.

EXPANDED COVERAGE

• VuLink is truly global, offering cellular coverage across multiple networks. Future proof your system for decades with 4G LTE Category M1/NB-IoT technology, while ensuring backwards compatibility with quad-band 2G coverage.

• VuLink is also the first in-well Iridium satellite device featuring customized data compression and low power usage to lengthen battery replacement cycles.

FREE GLOBAL CELLULAR DATA

• VuLink offers free cellular data for life, right out of the box, no set up required. See back for details.

EXTENDED LIFE

• VuLink offers two-to-five times the battery life of similar devices. M1 and NB-IoT offer extraordinary power savings. And at faster reporting rates, VuLink offers exponential savings – more than two years of battery life at 15-minute reporting intervals.

• Say good-bye to custom, expensive batteries – VuLink uses off-the-shelf alkaline and lithium D cell batteries.

Applications

• CONTINUOUS GROUNDWATER MONITORING
• REMOTE SURFACE WATER MONITORING
• RIVER GAUGING
• SALT WATER INTRUSION MONITORING
• STORMWATER MONITORING
• REMEDIATION
• WASTE MANAGEMENT
• IRRIGATION
• MINING WATER MANAGEMENT
• INDUSTRIAL AND MUNICIPAL

Continuous GPS

HydroVu uses VuLink’s GPS to automatically locate and mark devices on maps, syncing devices and locations, increasing data quality, and making it easier to track free-floating buoys.

Encrypted Connections

VuLink with HydroVu offers SSL encryption of your data, and VuLink can password protect all local connections to prevent backdoor access.

Free Global Cellular Data

VuLink and HydroVu offer free data up to 1 transmission for 24 data points per day. Additional plans can be purchased at Hydrovu.com. No more worrying about provisioning SIM cards and checking multiple systems for data usage. VuLink works with all LTE networks that support LTE-M1/NB-IoT. For a complete list visit in-situ.com/VuLinkNetworks.

Expanded Connectivity

VuLink also can read high frequency and low frequency pulse inputs, configured in VuSitu. And the device’s new Load-Bearing Universal Adapter can connect to anything.

Cellular Specifications

ELECTRICAL

BATTERY - 3 x D cell (1.5V - 3.6V) Alkaline / Li-SOCl2 [Lithium Thionyl Chloride] / Li-MnO2 [Lithium Manganese Dioxide] supported. Li-MnO2 [Lithium Manganese Dioxide] recommended for best performance

OPERATION TIME - (24 hour reporting, Li-MnO2 ) Up to 12 years,  (24 hour reporting, Alkaline) Up to 3 years,  (hourly reporting, Li-Mno2 ) Up to 2 years

CLOCK ACCURACY - Less than 1 minute drift per year with ability to synchronize to network provided timefor accuracy +/- 1 second

NETWORK COMMUNICATION

NETWORK TYPE - 4G LTE Category M1 (LTE-M) / NB-IoT (Narrow Band) with 2G fallback

BANDS LTE - Global - B1(2100), B2(1900), B3(1800), B4(AWS1700), B5(850), B8(900), B12(700), B13(700), B18(800), B19(800), B20(800), B28(700) Verizon - B4(AWS1700), B13(700) 2G Quadband - B2(1900), B3(1800), B5(850), B8(900)

PROTOCOLS - HTTPS (HydroVu), SMS (alarms)

DATA PROVIDER - Built-in free** global roaming (see Network List Addendum for details: in-situ.com/VuLinkNetworks), additional single 4FF slot for 3rd party SIM support

ANTENNA - SMA-M connector

GPS - Up to 3m accuracy, built-in antenna

FILE FORMAT - (non-HydroVu) CSV

REMOTE SETUP - Supported

Satellite Specifications

ELECTRICAL

BATTERY - 3 x D cell (1.5V - 3.6V) Alkaline / Li-SOCl2 [Lithium Thionyl Chloride] / Li-MnO2 [Lithium Manganese Dioxide] supported. Li-MnO2 [Lithium Manganese Dioxide] recommended for best performance

OPERATION TIME - (24 hour reporting, Li-MnO2 ) Up to 3 years,  (24 hour reporting, Alkaline) Up to 1 year,  (hourly reporting, Li-Mno2 ) Up to 6 months

CLOCK ACCURACY - Less than 1 minute drift per year with ability to synchronize to network provided timefor accuracy +/- 1 second

NETWORK COMMUNICATION

NETWORK TYPE - Iridium Short Burst Data

BANDS LTE - N/A

PROTOCOLS - HydroVu

DATA PROVIDER - Iridium Short Burst Data

ANTENNA - SMA-M connector

GPS - Up to 3m accuracy, built-in antenna

FILE FORMAT - N/A

REMOTE SETUP - Supported

Common Specs for Cellular & Satellite

MECHANICAL

DIAMETER - 1.85 in / 47 mm

LENGTH - 19.1 in / 485 mm

WEIGHT - 2.2 lb / 1.0 kg (with included alkaline batteries and carabiner, excluding antenna)

MATERIALS - Ryton (housing), PVC (battery cover), Titanium (Twistlock connector, eyebolt), 316 Stainless Steel (carabiner), Silicone (keypad cover), Brass (SMA antenna connector), Polycarbonate (label), Viton (O-rings)

STORAGE TEMPERATURE  -20°C to 60°C

OPERATING TEMPERATURE -20°C to 50°C (Li-SOCl2/Li-MnO2), 5°C - 40°C (Alkaline)

INGRESS PROTECTION - Device: IP68 System: Up to IP68 per antenna specification

INSTRUMENT COMMUNICATION

PROTOCOLS - Modbus over RS-485, Pulse low/high frequencies (max 40 kHz)

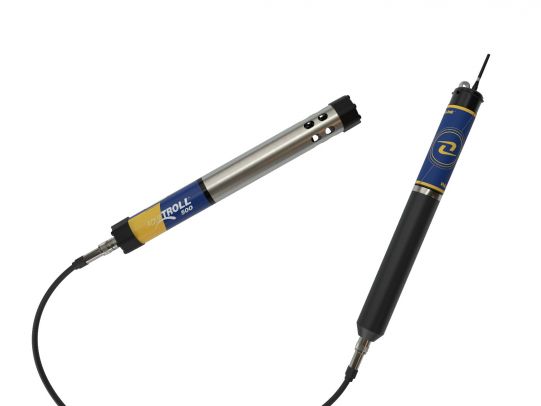

CONNECTORS - 1 In-Situ Twistlock (supports multiple instruments via Rugged Cable Splitter, TROLL Net Hub, or Load-Bearing Universal Adapter)

SIMULTANEOUS CONNECTIONS - Up to 8 instruments (total maximum of 75mA provided to connected instruments at 16V)

VENTING - Built-in on all models, no desiccant required

BAROMETRIC COMPENSATION - Built-in on all models for automatic compensation of non-vented level readings

BAROMETER ACCURACY +/- 1 hPa

ALARMS - Configurable based on instrument readings and device parameters, second reading/reporting schedule available when in alarm state

POWER - Total maximum of 75mA provided to connected instruments at 16V (intended typically to power a single instrument)

SETUP

WIRELESS SETUP - Supported via Bluetooth Low Energy

LOGGING RATE -1 minute to 7 days

TRANSMISSION RATE - 5 minutes to 7 days

MEMORY - 512 MB (soldered to circuit board)

WARRANTY - 2 YEAR

 **Call for wall/pole mounting kit**
