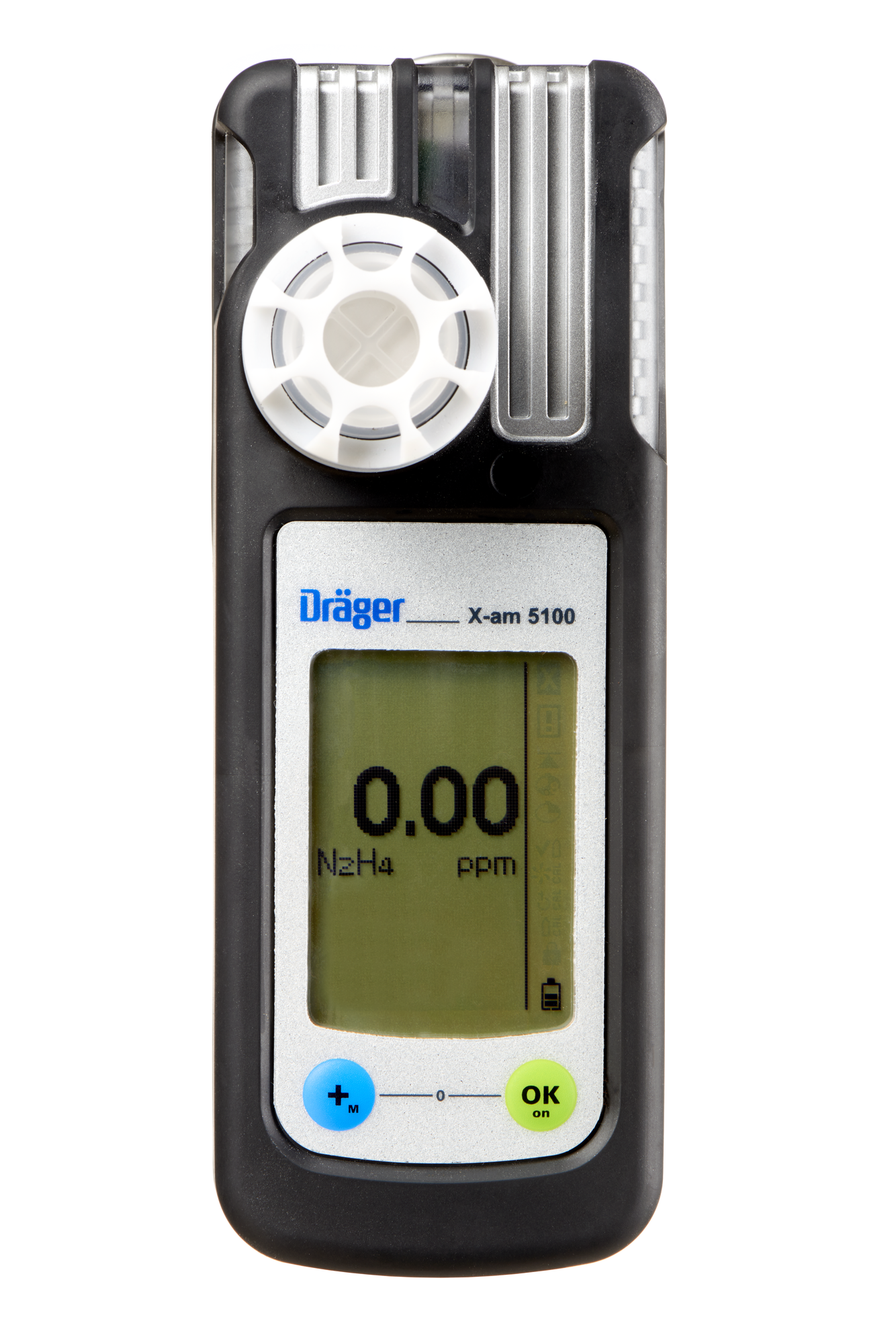

Draeger X-am 5100 Single-Gas Detector

For manufacturing petrochemical products, aseptic packing, or handling of rocket fuel: the Dräger X-am 5100 portable single-gas detector ensures safe handling of HF, HCl, H2O2 or hydrazine – thanks to proven Dräger sensor technology and a device design which is perfectly customized to reactive gases.

Draeger X-am 5100 TECHNICAL DATA

• Dimensions (W x H x D) 48 x 130 x 61 mm; 1.89 x 5.12 x 2.4 inches
• Weight 220 – 250 g; 7.8 – 8.8 oz.
• Ambient conditions Temperature - 20 to + 50 °C; - 4 to + 122 °F
• Pressure 700 to 1300 mbar; 20.7 to 38.4 inch Hg
• Relative humidity 10 to 90 % RH
• Alarms Visual 360° Audible Multi-tone > 90 dB at 30 cm; 1 ft.
• Vibration Ingress Protection IP 54
• Operating times ~150 h (alkaline battery), ~150 h (NiMH rechargeable battery), or ~180 h (NiMH high capacity rechargeable battery)
• Charging times < 4 h
• Data logger Retrievable using an infrared interface > 1000 h at a recording interval of 1 value per minute

Approvals

• ATEX I M1 Ex ia I Ma II 1G Ex ia IIC T4/T3 Ga - 20 °C ≤ Ta ≤ + 55/40 °C
• IECEx Ex ia I Ma Ex ia IIC T4/T3 Ga - 20 °C ≤ Ta ≤ + 55/40 °C c CSA us Class I, Div. 1, Groups A,B,C,D TC T4/T3 Class I, Zone 0, A/Ex ia IIC T4/T3 /Ga CE mark
• Electromagnetic compatibility Guideline 2004/108/EC Explosion protection – Guideline 94/9/EC
