Solinst Model 103 Tag Line With Laser Marked Round Cable

The Solinst Tag Line uses a weight attached to a laser marked cable or tape, and is principally designed for use during the installation of monitoring wells. The Tag Line also provides a simple method to measure the depth to the bottom of a well.

The Tag Line is perfect for use when installing Solinst Model 403 CMT Multilevel Systems, as you can easily measure the depth to the top of a backfill sand or bentonite layer during the completion of a well.  It is also ideal as a multipurpose marked support line.

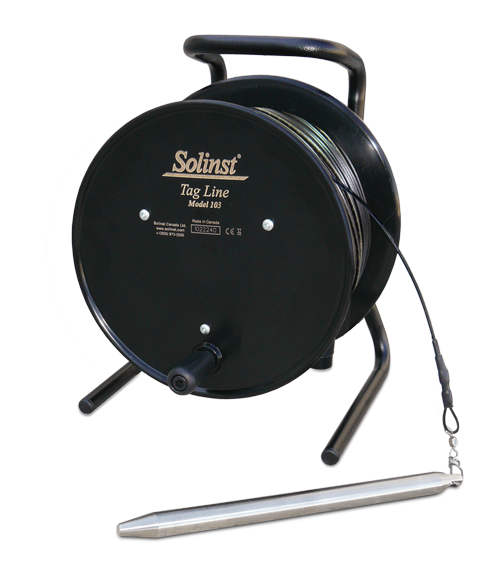

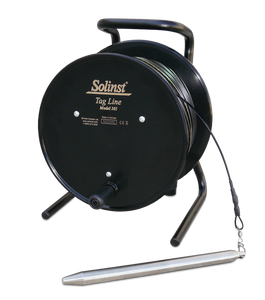

The cable or tape is mounted on a sturdy free-standing reel with a carrying handle, weight holder and brake.

Laser Marked Cable

The Tag Line uses durable polyethylene coated 1/16" (1.6 mm) stranded stainless steel wireline with a minimum break strength of 270 lbs (122 kg). It comes in standard lengths of 100 ft. to 1000 ft. (30 m to 300 m). Other lengths are available by request.

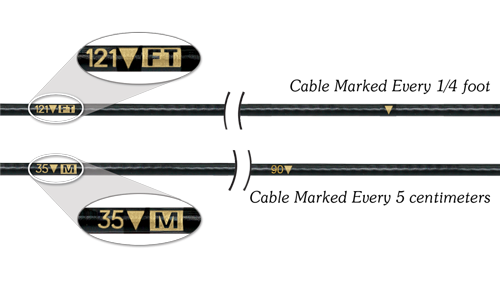

Markings are clearly and accurately laser etched every 1/4 foot or every 5 centimeters of the cable. The laser markings allow the cable to run smoothly over the Tape Guide.

Applications Where Tag Lines Are Useful

• Accurately measure depth to backfill during well construction

• Measured safety support line for deployment of pumps,   bailers, samplers and packers

106132          103 Tag Line (laser marked), 110ft c/w tape guide

106142          103 Tag Line (laser marked), 300 ft c/w tape guide

106172          103 Tag Line (laser marked), 100m c/w tape guide

106299          103 Tag Line (laser marked), 30m c/w tape guide

106300          103 Tag Line (laser marked), 200ft c/w tape guide

106302          103 Tag Line (laser marked), 500ft c/w tape guide

106304          103 Tag Line (laser marked), 750ft c/w tape guide

106305          103 Tag Line (laser marked), 1000ft c/w tape guide

106306          103 Tag Line (laser marked), 60m c/w tape guide

106308          103 Tag Line (laser marked), 150m c/w tape guide

106310          103 Tag Line (laser marked), 250m c/w tape guard

106311          103 Tag Line (laser marked), 300m c/w tape guard

106718          103 Tag Line (laser marked), 1500 c/w tape guard

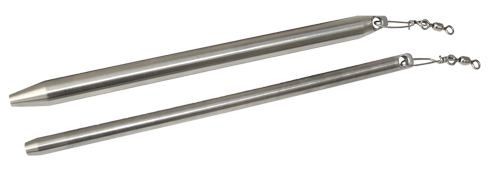

316 Stainless Steel Tags

The standard stainless steel tag weight is 1.5 lbs (0.68 kg) and measures 3/4" x 1 ft. (19 mm x 30 cm).  A narrow tag weight, 1/2" x 1 ft. (13 mm x 30 cm), weighing 0.65 lbs (0.30 kg), is also an option. Tag weights have tapered ends to minimize hang-ups during deployment and return to surface, and can be clipped on and off the cable or tape. This allows the use of the reel-mounted marked cable or tape for other uses.

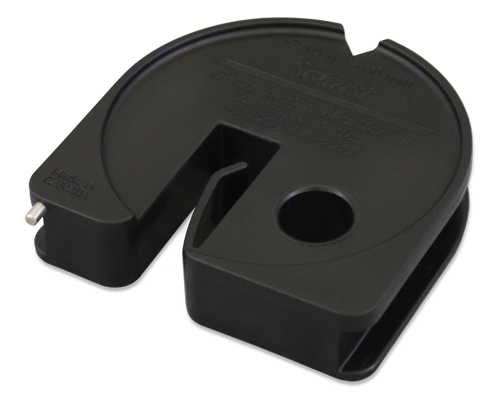

Tape Guide

A Tape Guide is provided with each Tag Line. It can be placed over the top of the well casing for ease of use and to protect from damage on rough edges. It can also increase reading accuracies.
