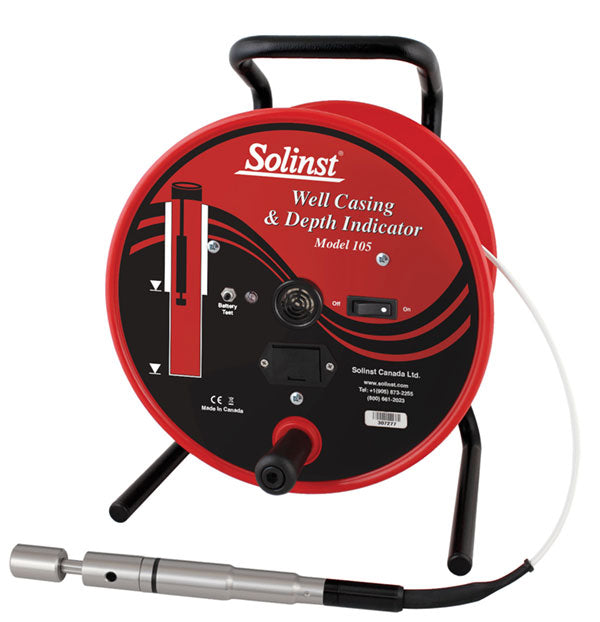

Solinst Model 105 Well Casing & Depth Indicator

Simple and durable, the Well Casing & Depth Indicator is easy to use when detecting metal well casing or measuring total well depth. It offers both of these functions without having to switch out the probe.

The Well Casing & Depth Indicator is useful when determining where metal casing starts and ends in new or existing well constructions, hydrofracturing, and installing packers or other downhole instruments.

The 105 Well Casing & Depth Indicator uses a dual-function stainless steel probe connected to clearly marked flat tape, fitted on a well-balanced reel.

Well Casing & Depth Indicator Operation

The probe has a strong internal magnetic assembly to detect well casing. When the probe is adjacent to magnetic metal (e.g. steel) a circuit is completed activating the buzzer and light (quick intermittent beeps and flashing red light). When the probe is no longer next to the casing, the signals stop. Depths are read from the tape at surface.

A plunger at the bottom of the probe is used to measure total well depth. The light and buzzer activate when the plunger reaches the bottom of a well and is pushed into the probe body completing a magnetic circuit (slow intermittent beeps and flashing red light). The depth is read from the tape.

The convenient battery test button checks the main circuitry to determine when the battery needs replacing. For easy-access, the battery is housed in a drawer in the front of the faceplate.

Well Casing & Depth Indicator Features

• One probe for both well casing depth indication and total well depth measurement

• Uses non-stretch, accurately laser marked flat tape

• Tape lengths up to 2000 ft. (600 m)

• Replacement tapes are interchangeable with other Meters

• Rugged design with 3 year warranty

Well Casing & Depth Indicator Applications

• Measuring total well depth

• Groundwater well installation

• Detecting cracks in well casing

• Installing telescoping well screen

• Packer and downhole instrument installation

• Hydrofracturing

• Confirming existing well construction

• Decommissioning abandoned wells

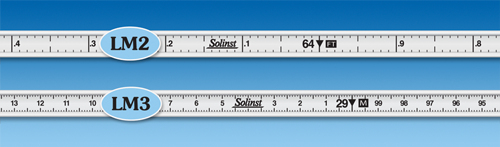

Laser Marked Flat Tape

The 105 Well Casing & Depth Indicator uses corrosion and chemical-resistant flat tape. The tape is non-stretch and high in tensile strength to support the heavier 105 Probe. The thick dog bone design prevents adherence to wet surfaces and allows the tape to hang straight. It is also easy to repair and splice. The 3/8" (10 mm) tape comes with permanent laser markings every 1/100 ft. or each millimeter, in lengths up to 2000 ft. (600 m).

LM2:  Feet and tenths: with markings every 1/100 ft.

LM3:  Meters and centimeters: with markings every mm

Well Casing & Depth Indicator Probe

The 105 Probe is made from 316 stainless steel and is submersible up to 1650 ft. (500 m). It contains a strong internal magnetic assembly to detect metal casing and a plunger assembly to measure total well depth. The tape seal plug design allows the probe to be quickly and easily replaced if required.

Standard Length Options

The Solinst 105 Well Casing & Depth Indicator is available in the following standard lengths:

Small Reel 100 ft. 30 m   200 ft. 60 m   300 ft.  100 m

Medium Reel 500 ft.   150 m  750 ft.   250 m  1000 ft.   300 m

Large Reel 1250 ft.   400 m  1650 ft.   500 m  2000 ft.   600 m

114440          105 Well Casing & Depth Indicator PWCD/LM3/30m

114441          105 Well Casing & Depth Indicator PWCD/LM3/60m

114442          105 Well Casing & Depth Indicator PWCD/LM3/100m

114443          105 Well Casing & Depth Indicator PWCD/LM3/150m

114445          105 Well Casing & Depth Indicator PWCD/LM3/250m

114446          105 Well Casing & Depth Indicator PWCD/LM3/300m

114447          105 Well Casing & Depth Indicator PWCD/LM3/400m

114448          105 Well Casing & Depth Indicator PWCD/LM3/500m

114449          105 Well Casing & Depth Indicator PWCD/LM3/600m

114450          105 Well Casing & Depth Indicator PWCD/LM3/100ft

114451          105 Well Casing & Depth Indicator PWCD/LM3/200ft

114452          105 Well Casing & Depth Indicator PWCD/LM3/300ft

114453          105 Well Casing & Depth Indicator PWCD/LM3/500ft

114455          105 Well Casing & Depth Indicator PWCD/LM3/750ft

114456          105 Well Casing & Depth Indicator PWCD/LM3/1000ft

114457          105 Well Casing & Depth Indicator PWCD/LM3/1250ft

114458          105 Well Casing & Depth Indicator PWCD/LM3/1650ft

114459          105 Well Casing & Depth Indicator PWCD/LM3/2000ft

Other Options

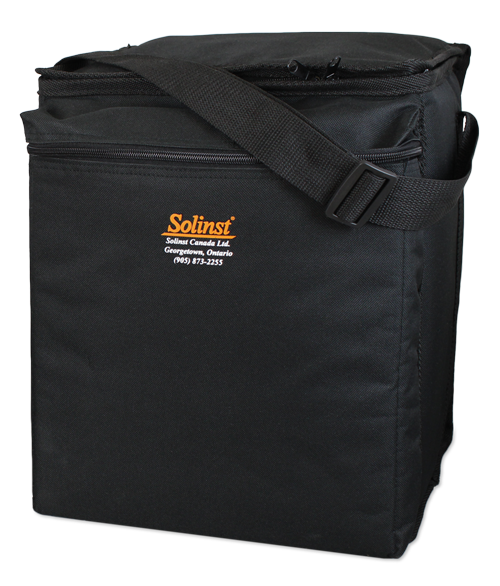

Carrying Case: An optional padded nylon carrying bag with a shoulder strap is available to fit medium and small reels. The sturdy bags have a zippered top and front pocket and a vent in the base to allow moisture to dissipate. They provide protection during transport as well as handling convenience.

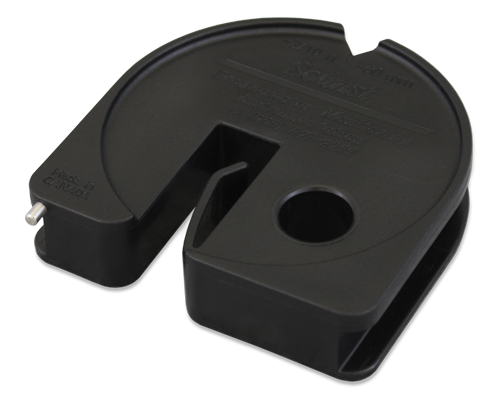

Tape Guide/Datum

A tape guide is provided which fits over the top of the well casing to protect the tape from damage and to provide an accurate measurement point. It ensures easy, consistent measurements regardless of who takes readings. It can also provide support for hanging small reels on the casing.
