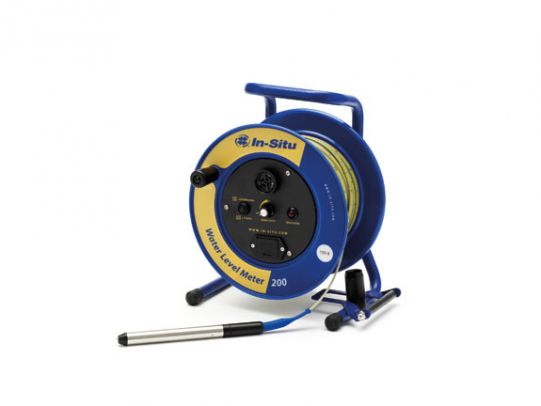

Water Level Meter 200

This economical water level tape, with a Kevlar-reinforced polyethylene tape and stainless steel conductors, offers long-lasting performance for well drillers, pump installers, and other service users. The Water Level Meter 100 can take static level readings and then switch to drawdown mode to perform low-flow and pump tests. Additionally, the IP68-rated probe can be submerged in depths of up to 300 m (1,000 ft) to determine the bottom of the well.

A corrosion-resistant probe and protected electronics prevent wear and tear. An integrated well hangar and roller bar protect the tape and speed deployment. And high-strength tape reduces stretching, ensuring accurate readings over the lifetime of the meter. Available in feet or meters, the flexible tape winds smoothly onto the reel and does not stick to wet surfaces and well casings.

BE EFFECTIVE

• Reduce costs: In-Situ Water Level Meters offer durability and accuracy at prices to fit varying budgets and needs. The integrated well hanger, guide, and break allow for easier deployment, saving time and money in the field. Flexible tape winds smoothly onto reel and does not stick to wet surfaces and well casings, and vinyl-coated carrying handle is ergonomically designed for easy tape rewinding.

• Reduce equipment: With static and drawdown modes, the same meter can take static level readings and then switch to drawdown mode to perform low-flow and pump tests – saving you time and money. The IP68-rated probe can be submerged in depths of up to 300 m (1,000 ft) to determine the bottom of the well.

• Protect your investment: The safety disconnect feature enables the probe to be released from the tape if it gets trapped inside the well, protecting your investment. The quick-connect probe can be easily and reliably replaced in the field – there’s no need to send the meter in for repair.

BE RELIABLE

• Log accurate data for years: High-strength tape reduces stretching, ensuring accurate readings over the lifetime of the meter. By adjusting the sensitivity dial, the probe can be adjusted to compensate for false readings caused by cascading water. Additionally, the sensor design provides accurate measurements with almost zero displacement.

• Worry-free, field-ready design: Corrosion-resistant probe and protected electronics prevent wear and tear. Reels stand up to field use, with durable flanges that are constructed of impact and UV-resistant nylon.

• Ensure long-lasting operation: Polyurethane-coated steel frame and stainless steel axle increase longevity. The built-in roller bar guards the tape from rough or jagged well casings, and the optional padded carrying case protects the meter between job sites.

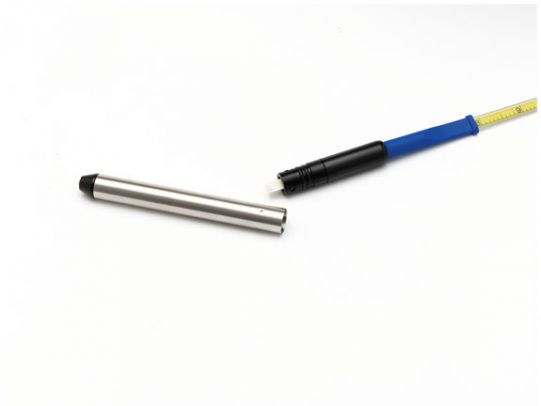

SUBMERSIBLE PROBE

Stainless steel and Teflon-coated probe is pressure rated up to 500 psi. A security link prevents tape damage by releasing the probe if it becomes stuck in the well.

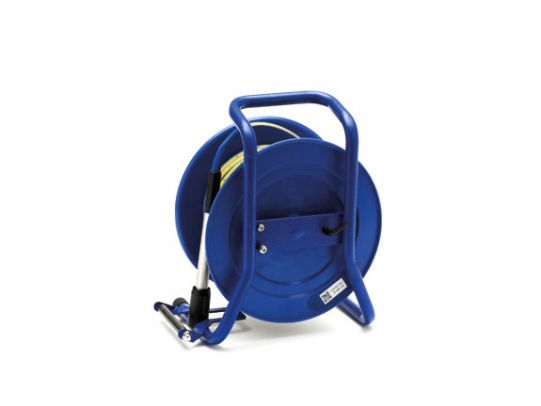

IMPACT-RESISTANT REELS

1. Battery Compartment

2. Indicator LED

3. Buzzer

4. Sensitivity Dial for Cascading Water

5. Reel Handle

6. Drawdown Mode Button

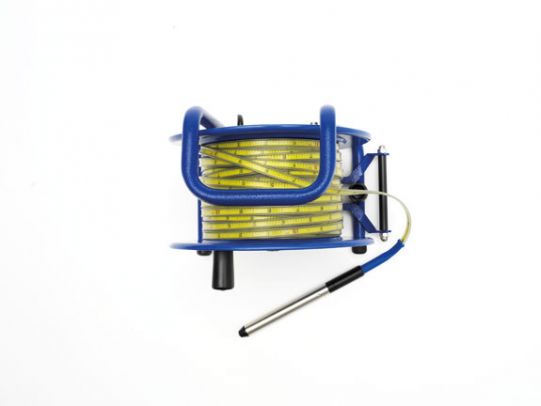

Tape Specifications

CONSTRUCTION - High Tensile Steel with Polyethylene Jacket

WETTED MATERIALS - Polyethylene, Santoprene, Delrin, PVC

WIDTH - 1 cm (0.4 in)

WEIGHT - 0.63 kg per 30 m (1.4 lbs per 100 ft)

LABELS - Feet and tenths Meters and centimeters

MARKINGS - 1 mm (0.01 ft)

BREAK STRENGTH - 127 kg (280 lbs)

CERTIFICATIONS - ASME (EU Class II), CE, WEEE, RoHS Compliant

Probe Specifications

PROBE DIAMETER - 16 mm (0.625 in)

LENGTH - 13.5 cm (5.3 in)

WEIGHT - 87 g (3.1 oz)

ENVIRONMENTAL RATING - IP68

PRESSURE RATING - Up to 500 psi

WETTED MATERIALS - Stainless Steel, Delrin

SAFETY DISCONNECT - 34 kg (75 lb)

FIELD REPLACEABLE - Yes

Reel Specifications

Small Reel

TAPE LENGTHS - 30 m, 100 ft 60 m, 200 ft

Width - 36 cm (11 in)

HEIGHT - 31 cm (12 in)

REEL WEIGHT - 2.3 kg (5 lb)

POWER MANAGEMENT - On/Off Switch

POWER SOURCE - 9 volt Alkaline

MODES - Static and Drawdown

SELF TESTS - Probe Circuit Tester

WATER LEVEL INDICATORS - LED and Buzzer

SENSITIVITY CONTROL - Variable Sensitivity Dial

BRAKE - Adjustable

WELL HANGER - Integrated

TAPE GUIDE - Roller Bar

OPTIONAL ACCESSORIES - Small Carry Bag

Medium Reel

TAPE LENGTHS - 100 m, 300 ft 150 m, 500 ft

Width - 38 cm (14 in)

HEIGHT - 41 cm (16 in)

REEL WEIGHT -  4.1 kg (9 lb)

POWER MANAGEMENT - On/Off Switch

POWER SOURCE - 9 volt Alkaline

MODES - Static and Drawdown

SELF TESTS - Probe Circuit Tester

WATER LEVEL INDICATORS - LED and Buzzer

SENSITIVITY CONTROL - Variable Sensitivity Dial

BRAKE - Adjustable

WELL HANGER - Integrated

TAPE GUIDE - Roller Bar

OPTIONAL ACCESSORIES - Medium Carry Bag

Large Reel

TAPE LENGTHS - 250 m, 750 ft 300 m, 1,000 ft 400 m, 1,250 ft 600 m, 2,000 ft

Width - 46 cm (18 in)

HEIGHT - 56 cm (22 in)

REEL WEIGHT -  6.8 kg (15 lb)

POWER MANAGEMENT - On/Off Switch

POWER SOURCE - 9 volt Alkaline

MODES - Static and Drawdown

SELF TESTS - Probe Circuit Tester

WATER LEVEL INDICATORS - LED and Buzzer

SENSITIVITY CONTROL - Variable Sensitivity Dial

BRAKE - Adjustable

WELL HANGER - None

TAPE GUIDE - Well Mounted

OPTIONAL ACCESSORIES - Tape Guide

Warranty

Water Level Meter - 5 years

Probe - 2 years

Rental Kit Includes: CARRYING BAG, MANUAL, BATTERY
